Mega Pontoon
Mega Pontoon is engineered and fabricated to meet the highest standards of quality.
- Mega Pontoon
- Mega Pontoon is Marine Develop Marvel’s high-performance floating structure, engineered for exceptional load-bearing capacity, safety, and durability. Designed for U.S. Navy aircraft carrier berthing and the mooring of large commercial vessels, it offers proven resistance to extreme wave loads, buckling, and vessel impacts. Its advanced connection system ensures exceptional structural integrity while effectively controlling relative motion between connected modules.
Mega Pontoon Certifications & Designations

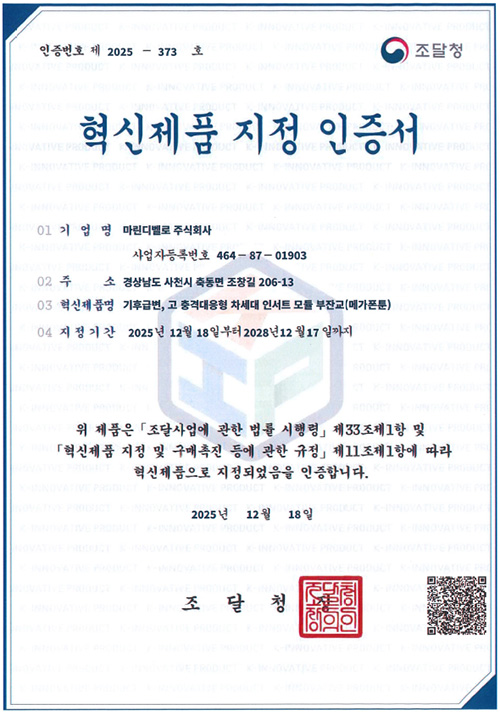

Innovative Product Designation
Public Procurement Service (PPS)

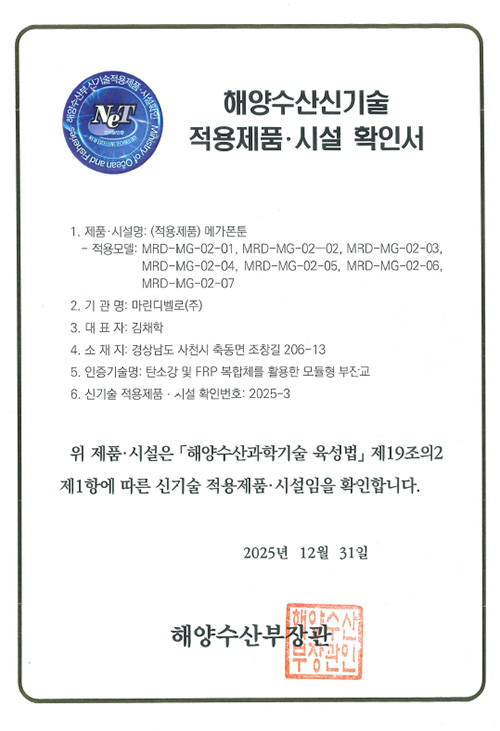

New Excellent Technology (NET) Certification in the Marine and Fisheries Sector
Ministry of Oceans and Fisheries (MOF)
Verification of a Facility Incorporating New Marine and Fisheries Technology
Ministry of Oceans and Fisheries (MOF)
Design & Structural Analysis Of Mega Pontoon

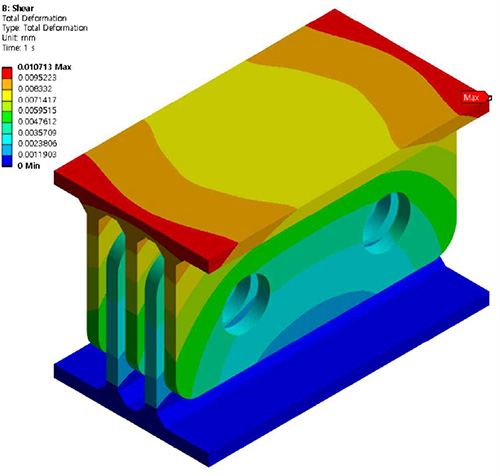

Proven Engineering Excellence: Mega Pontoon’s performance and structural integrity have been validated through comprehensive structural analyses, including buckling, vessel impact, and connection stress analyses.
| Criteria | Acceptance Criteria (Impact Velocity: 1.0 m/s) |
Mega Pontoon (Patented) |
Concrete Pontoon | FRP Pontoon |
|---|---|---|---|---|
| Numerical Energy Loss (%) | 1.5 ↓ | 0.56 | 4.35 | 2.22 |
| Kinetic Energy Variation | To be sustained | Sustained | Sustained | Decreased |
| Post-Impact Condition | No Damage | Plastic Deformation | Fracture | Structural Collapse |
| Maximum Displacement (mm) | ≤ 700 | 609.95 | 232.38 | 1440.30 |
| Final Evaluation | Satisfactory (OK) | Not Satisfactory (NG: Numerical Energy Loss and Fracture) |
Not Satisfactory (NG: Numerical Energy Loss, Structural Collapse, and Maximum Displacement) |
|
| Evaluation Item | Test Model | Conclusion | ||
|---|---|---|---|---|
| Developed Pontoon (Mega Pontoon) |
Comparison Model 1 (Concrete Pontoon) |
Comparison Model 2 (FRP Pontoon Conclusion) |
||
| Maximum Reaction Force (0.5 m/s) |
≥ 4.56 × 10⁶ N | The same maximum reaction force was applied to all test models. | ||
| Maximum Reaction Force (1.0 m/s) |
≥ 6.48 × 10⁶ N | The same maximum reaction force was applied to all test models. | ||
| First Buckling Load (N) |
7.30 × 10⁶ | 2.45 × 10⁶ | 4.57 × 10³ | The developed pontoon recorded the highest 1st buckling load |
| Second Buckling Load (N) |
1.71 × 10⁷ | 3.15 × 10⁶ | 8.54 × 10³ | Mega Pontoon exhibited the highest second buckling load. |
| Result | OK | NG | NG | Mega Pontoon demonstrated the highest level of resistance to buckling. |
| Evaluation Items | Analysis Models | Conclusion | ||
|---|---|---|---|---|
| Developed Connector | Comparative Connector 1 | Comparative Connector 2 | ||
| Maximum Stress (Tension, Shear, and Bending) |
Maximum stress remains below the yield strength under all loading conditions. | Maximum stress is higher than that of the developed connector, and bending stress exceeds the yield strength. | Maximum stress remains below the yield strength under tensile and shear loading; however, the overall stress level is higher than that of the developed connector. | The developed connector demonstrates the highest level of structural safety. |
| Deformation Behavior | Elastic deformation occurs under all loading conditions. | Plastic deformation occurs under bending loads. | The hinge-type configuration generates no bending stress. | The developed connector remains structurally stable without undergoing plastic deformation. |
| Stress Under Bending Moment Loads | Structural safety is maintained under bending moment loads. | There is a potential risk of plastic deformation under bending moment loads. | The hinge-type configuration generates no bending stress. | The developed connector maintains structural safety under bending moment loads. |
| Relative Motion Control (Module Integration) |
Capable of controlling relative motion, with excellent module integration performance. | Capable of controlling relative motion, but with lower performance than the developed connector. | Unable to control relative motion, creating a potential risk of collision between pontoon modules. | Comparison Connector 2 presents a structural risk of collision between pontoon modules. |
| Structural Safety | Excellent | Moderate | Low | The developed connector demonstrates the highest level of structural safety. |
Global Export Track Record
U.S. Navy Aircraft Carrier Berthing Pontoon – Guam, USA
- Client / Requesting Agency: U.S. Department of Defense (DoD)
- Installation Site: Naval Base Guam, USA
- Delivery Date: November 2024
- Applicable Design Criteria & Specifications: UFC 4-151-10, UFC 4-152-01, and TR6074-OCN
- Structural Type: Composite Plate Pontoon

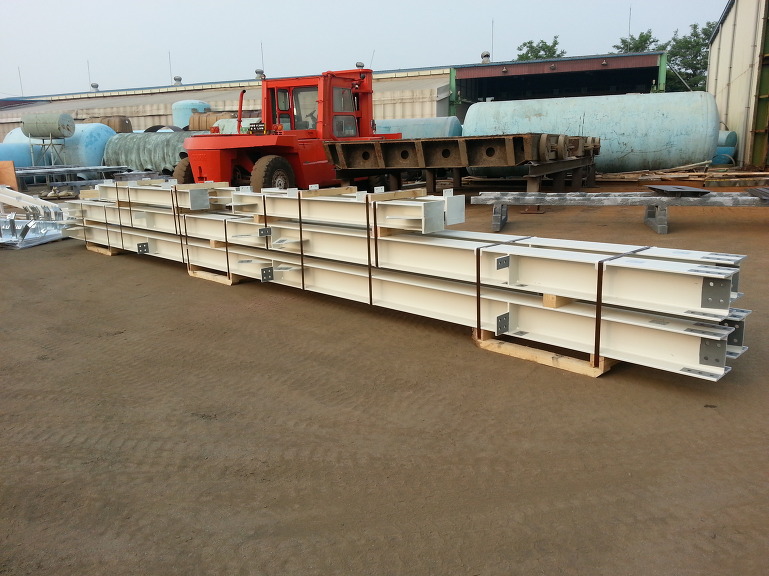

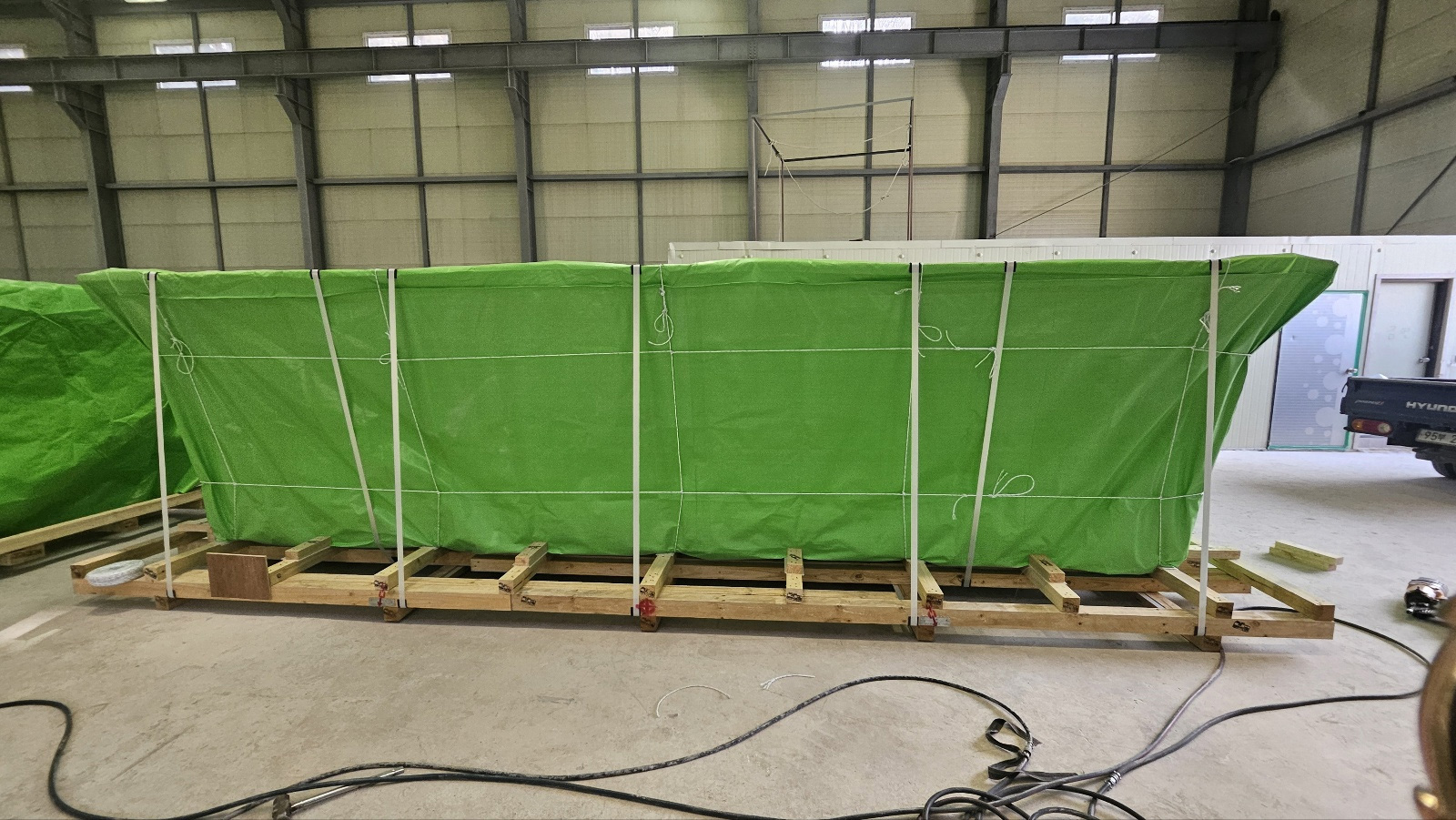

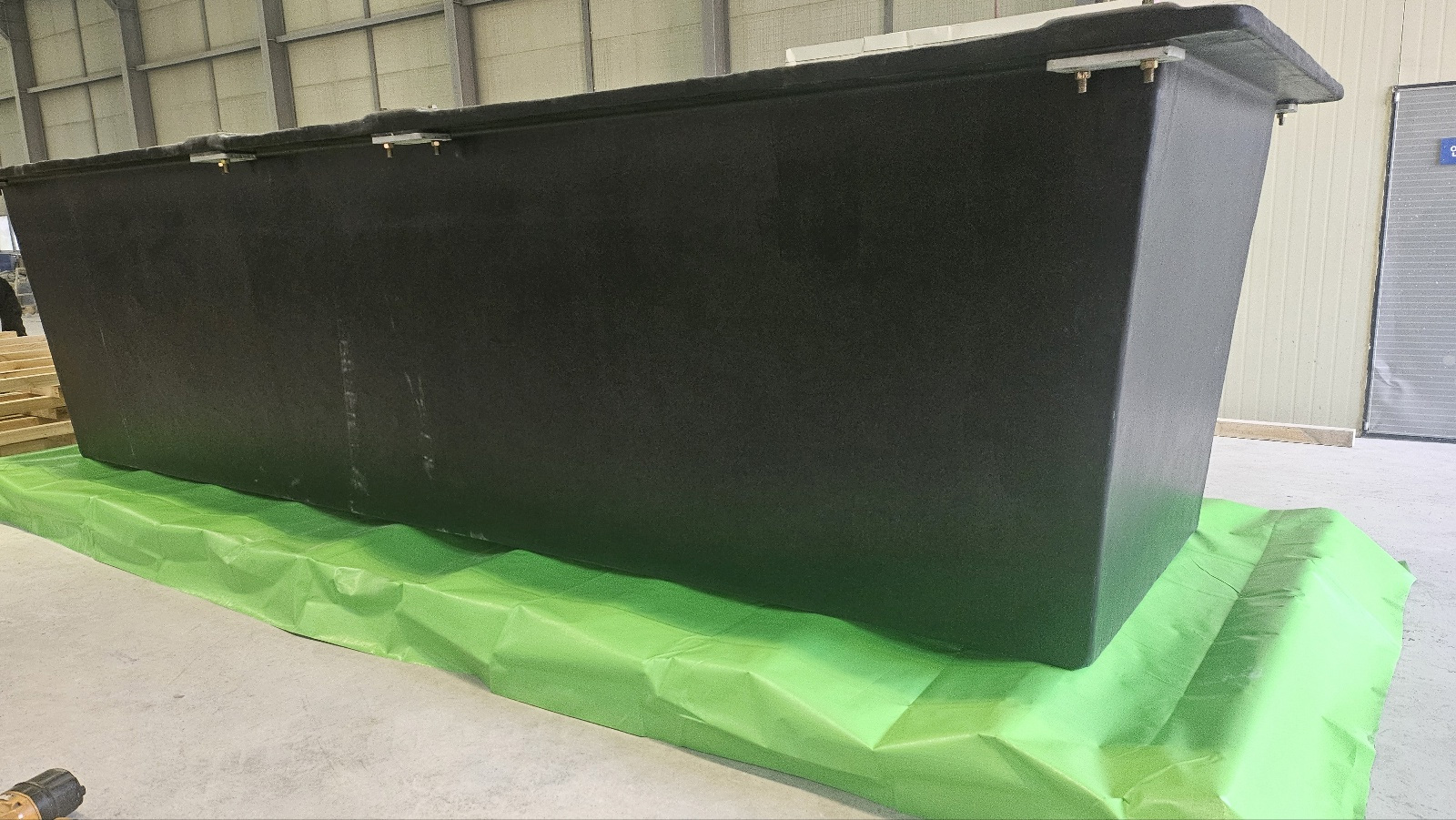

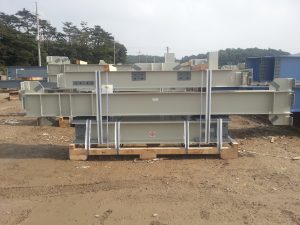

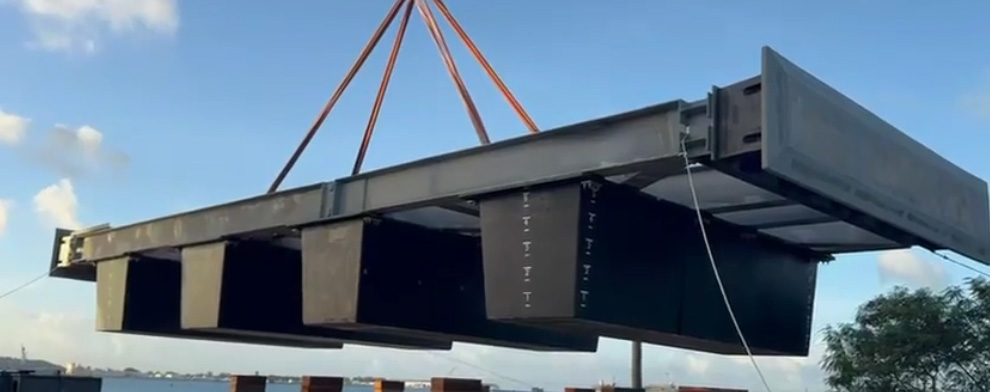

Mega Pontoon delivered to Guam, USA, for U.S. Navy aircraft carrier berthing (2024)

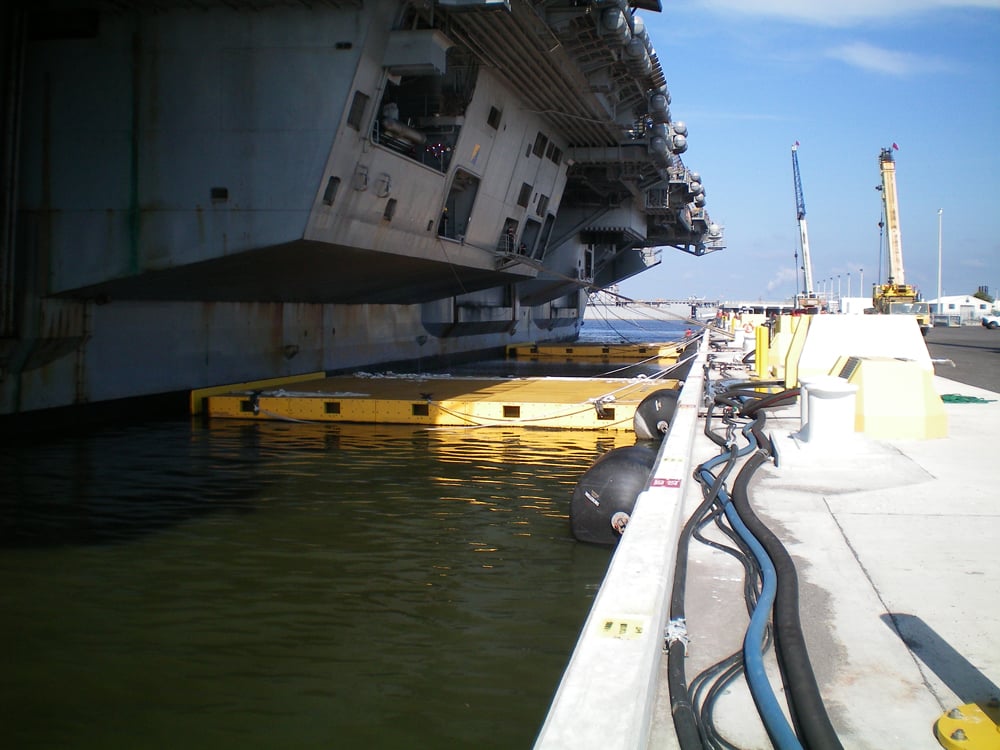

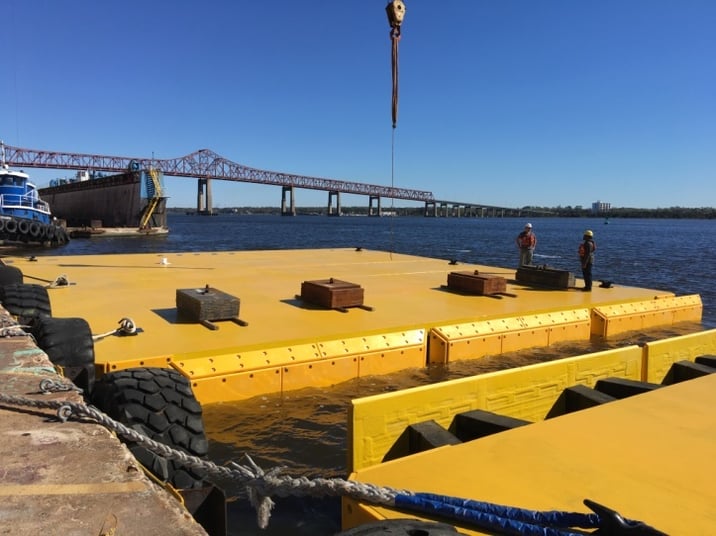

Final installation of the Mega Pontoon aircraft carrier berthing system at Naval Base Guam for the U.S. Department of Defense
Mega Pontoon Applications
-
Marina Development
Premium floating pontoons for marina infrastructure projects in Korea and overseas.
-
Berthing for Small and Medium-Sized Vessels
Highly durable floating pontoon systems tailored to the requirements of small and medium-sized vessels.
-
Berthing and Mooring for Medium and Large Vessels
Heavy-duty berthing and mooring facilities designed for medium and large commercial and naval vessels.
-
Floating Buildings & Marine Structures
Versatile floating platforms for floating homes, eco-resorts, floating villas, and offshore facilities.
